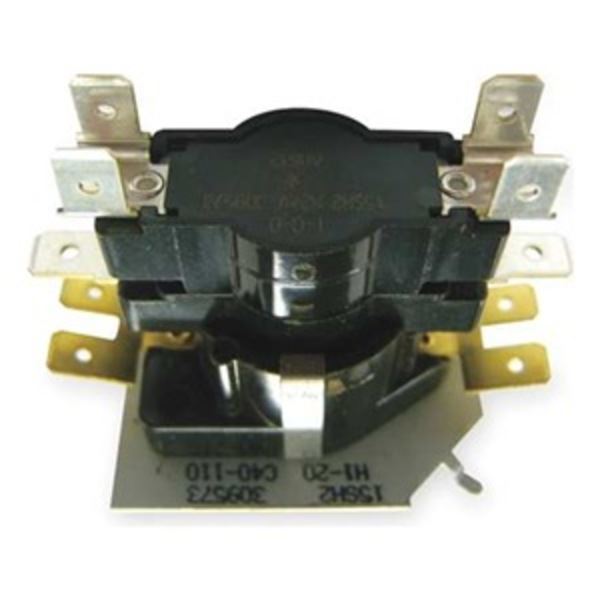

Furnace Sequencer Q106
— 4 Switches
— TYPE: Strip Heat And/Or Blower Fan In Heat Pumps And Electric Furnaces
— MAIN SWITCH ON TIME (SEC.): 1 to 110
— MAIN SWITCH OFF TIME (SEC.): 1 to 110
— NUMBER OF TIMINGS: 2
— 24V input control
— Pilot duty: 125VA at 120/480V
— Supco and White-Rodgers
— Switches 1 and 2 are simultaneous; for 2E608, switches 3 and 4 are simultaneous.
— Inductive load: 14/7A at 120/240V
— Resistive load: 25A at 120/240V, except 2FBW3 not rated for 120V resistive
— Locked rotor amps: 42

GS106
