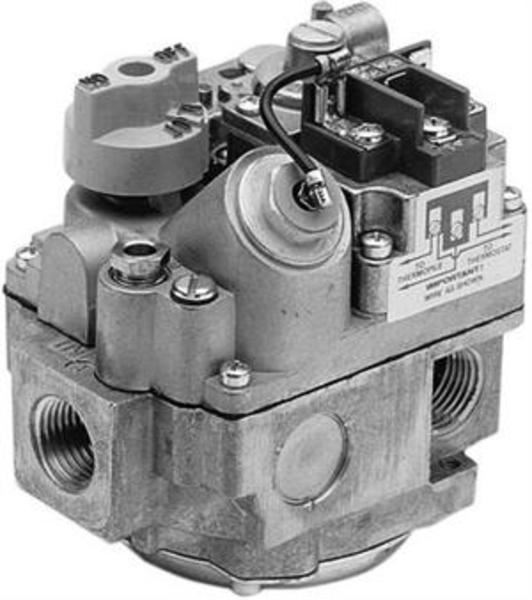

Robertshaw Millivolt Combo Gas Valve - Part# 700-502

Millivolt Combo Gas Valve The Robertshaw 700 millivolt gas valves are wall thermostat actuated combination gas valves. These controls combine a manual gas cock, automatic pilot safety valve and a millivolt operator. The automatic pilot safety is separate from the gas cock and provides gas shutoff in case of pilot outage. Regulated and non-regulated models are available. Standard features include: pilot outlet, pilot gas filter and pilot adjusting key. VALVES CAN BE MOUNTED IN ANY POSITION EXCEPT UPSIDE DOWN. Specifications:
— Factory model 7000AMVR
— Inlet Size 1/2"
— 3 position outlet straight-thru (FPT) 1/2"
— 3 position outlet side (FPT) with plugs 1/2"
— Capacity 100,000
— Coaxial thermopile & 2 lead thermopile can be used
— Reducer bushings included
— Electrical rating 250 MV to 750 MV, operating range
— Pressure regulator (optional by model) factory set @ 3.5" W.C.
— Pilot outlet 1-1/4" tubing
— Gas cock dial marking off-pilot-on
— Terminal type 1/4" spade
— Ambient temperature
€“40
° to 175
°F
— Maximum inlet pressure 14" W.C. (1/2 PSI) Replaces: FRYMASTER 344701402, 344701402 ROBERTSHAW 107-701-020, 107-701-046, 107-701-094, 109-701-020, 111-701-083, 111-701-139, 113-701-094, 135-701-020, 135-701-094, 340-701-400, 340-701-404, 340-701-405, 341-701-405, 344-701-402, 344-811-402, 367-701-400, UNI-LINE 1200-502, 344811400, 344811402 WHIRLPOOL 99726090
